Hypalon from ORCA
Orca® is designed for extreme conditions, for stronger performance, higher reliability and longer durability. We only build tubes in Hypalon for these reasons.

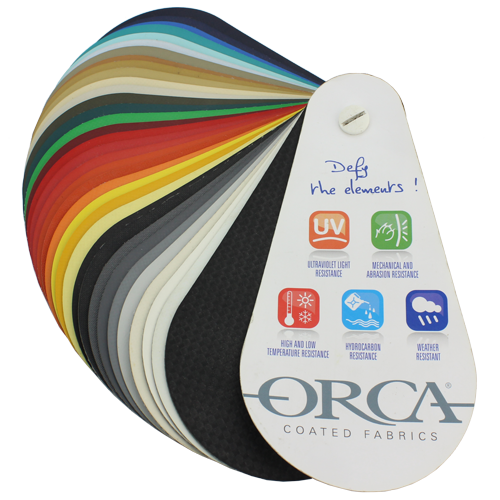

Orca coated fabrics, available in 30 different colours and 4 surface finishings
There are three types of material used to manufacture RIB tubes, PVC (Polyvinyl Chloride), Polyurethane and Hypalon. Manufacturing collars in PVC is a cheaper option as the process of building relies on the application of heat to seal the joints, although we can use PVC glue to repair tubes. Usually PVC is the prefered choice for mass produced RIBs.
Hypalon is the preferred material for those who require stronger performance and durability whether a commercial application using the higher Orca 866 heavy duty or leisure craft using the standard Orca 828 fabric.
The choice is simple. Hypalon !
Hypalon is the preferred material for those who require stronger performance and durability whether a commercial application using the higher Orca 866 heavy duty or leisure craft using the standard Orca 828 fabric.
The choice is simple. Hypalon !
Hypalon Specification
Orca 828 (Standard)
Suitable for most leisure craft from 2.6m to 8.5m+
Base Fabric: Polyester High Tenacity 1100 dtex – 990 deniers
Coating: Ext : Hypalon (Chlorosulfonated Polyethylene (CSM) / Neoprene (CR )) Int : Neoprene Sheet(CR)
Tensile Strength: >= 350 daN/5cm
Tear Resistance: >= 16 daN
Weight: 1300 +/- 100 g/m²
Suitable for most leisure craft from 2.6m to 8.5m+
Base Fabric: Polyester High Tenacity 1100 dtex – 990 deniers
Coating: Ext : Hypalon (Chlorosulfonated Polyethylene (CSM) / Neoprene (CR )) Int : Neoprene Sheet(CR)
Tensile Strength: >= 350 daN/5cm
Tear Resistance: >= 16 daN
Weight: 1300 +/- 100 g/m²
Orca 866 (Heavy Duty)
For commercial use craft, providing optimum strength and durability
Base Fabric: Polyester High Tenacity 1670 dtex – 1500 deniers
Coating: Ext : Hypalon (Chlorosulfonated Polyethylene (CSM) / Neoprene (CR )) Int : Neoprene Fabric(CR)
Tensile Strength: >= 460 daN/5cm
Tear Resistance: >= 35 daN
Weight: 1500 +/- 150 g/m²
For commercial use craft, providing optimum strength and durability
Base Fabric: Polyester High Tenacity 1670 dtex – 1500 deniers
Coating: Ext : Hypalon (Chlorosulfonated Polyethylene (CSM) / Neoprene (CR )) Int : Neoprene Fabric(CR)
Tensile Strength: >= 460 daN/5cm
Tear Resistance: >= 35 daN
Weight: 1500 +/- 150 g/m²
